One of the big improvements of the new Metatrader 5 strategy tester is
the possibility to use individual calculation frameworks ( agents ) to
distribute the load within the multiple (remote) cores and as result, to
greatly increase the speed of trading strategies optimization /
calculation. The agents can be installed on remote computers in your
local home/work network or on other internet-connected pc's around the
world.
Thus, the time for optimization using multiple cpu core's
is greatly reduced. The Metatrader 5 strategy tester automatically
assigns each agent the testing parameters and the interval to for the
next passage. As said above, you can use any available pc, both on a
local network and via the Internet. To do this you need to install on
the remote computers that you want to use the MetaTester.exe utility.
This utility is part of the Metatrader 5 installation package, so
there's no need for a separate download. Simply install the Metatrader 5
terminal.
The remote agent receives the required testing history
from the tester, so there's no need for multiple requests to the broker
servers. Access to remote agents is securely protected by a password.
Within the agents the following security mechanisms are implemented:
- Fully encrypted network protocol between the client terminal and the remote agent with a compression of traffic;
- Password protection;
- Ability to specify a list of IP addresses from which connection to the client terminal is allowed;
- Only local agents can use the DLL with the appropriate terminal resolution. DLL call is prohibited on remote agents;
-
The transmitted EA's code is never stored on the agent's HDD, but is
instead transferred in a transformed state, which is inaccessible by the
dump. On remote agents, messages of Expert Advisors (Print() function),
as well time of trade operation execution, are not recorded to the
journal;
- The agent does not know the name of the EA and doesn't store the miscalculation results on the HDD;
- The agent is protected by a security shield from dissemble and modification.
Here
is a detailed guide how to use the remote agents. I'm going to use the
dual-core cpu on my laptop as a remote agent on my desktop pc. 1.

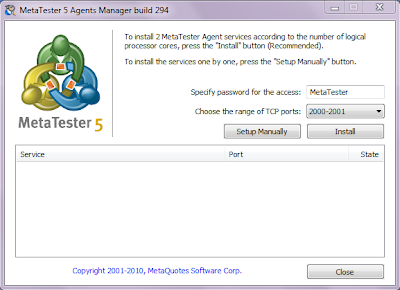

Open the MetaTester.exe utility on the computer that you want to use
for the remote-agent service. The Metatester agents manager program
MetaTester.exe is located in the Metatrader 5 installation folder (
default: C:\Program Files\MetaTrader 5\metatester.exe

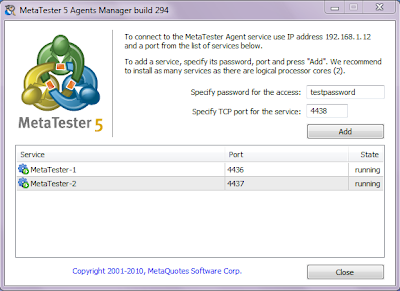

2. Specify a password and a port range for the remote agent connection.
The best option is to choose port numbers that are not used by other
programs. You can find a list of standard and unassigned ports here:
Iana.org port numbers
In my example i'm using the 4435-4436 port range. Press the "Add"
button. The number of available local agents must be equal to the number
of logical cores of the processor. In my case, i have a dual core Intel
cpu, so i installed 2 remote-agent services. Also, write down your ip
address stated above ( in my case, 192.168.1.12 )
3. Now go to
the computer where you will be using the Metatrader 5 strategy tester
and the remote agents. Open Metatester 5 and go to the "agents" tab. You
will see the "local" and "remote" tabs. The local cpu is listed on the
"local" tab. Via the context menu on the "remote" tab you can add the
remote agents:

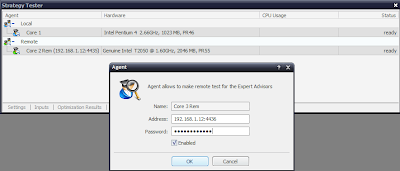

A pop-up window will appear. You must input the password, ip address and
port number that you specified earlier. In my case, i use the ip
address:port number 192.168.1.12:4435 for the remote agent 1 and
192.168.1.12:4436 for the remote second agent.
4. In case you
have a firewall installed on the computer with the remote-agents service
running, allow the connection. You may also open the ports on your
router if they are closed. I'm using the Comodo Firewall program, so i
had to allow the outgoing connection:
5. After you have added all remote agents you can test them by running a
EA optimization. In my case the remote agents were successfully
activated
As said above, all agents are shown in a table divided
into two parts - local and remote agents. The "Hardware" column contains
information about the type of the processor, CPU clock, RAM size and
internal performance rate (the higher the rate is, the the more powerful
the hardware is); CPU Usage — indicator of the core usage level; Status
— the status of the agent: busy, ready, unavailable.
You can add as many remote agents as you want, so you can build your own supercomputer. The
Metatrader 5
strategy tester provides a solutions with the remote agents feature for
complex Expert Advisor optimization, which traders would not dream of
being able to solve without access to supercomputers.
